Budnick Converting ®
tesa tape inc
75507

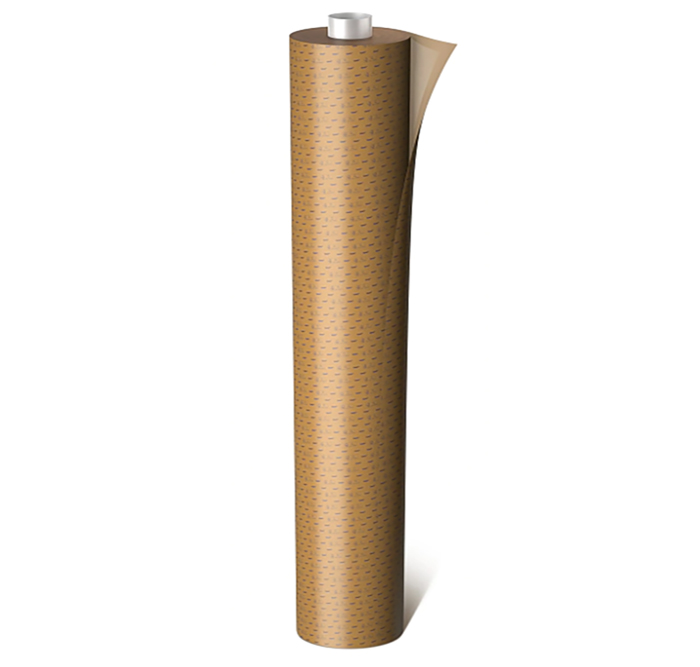

Tackified Acrylic Transfer Tape
tesa® 75507 is a tackified acrylic tape with superior initial adhesion even on rough surfaces. It bonds reliably to a wide range of different substrates and has very good aging properties and temperature as well as humidity resistance.
The new tesa® 75507 transfer tape also offers the high conformability that is of paramount importance for many lightweight mounting applications. Thanks to its versatility, it can be used for manufacturing processes as diverse as the mounting of lightweight parts, membrane switches, foams, felts, and fabrics. Even for the lamination of insulation materials, for splicing, and for the mounting of flooring systems, tesa® 75507 is the ideal transfer tape.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | |
|---|---|
| Adhesive | Acrylic |
| Thickness | 2.95 Mils |
| Tensile | |
|---|---|
| Elongation | |
| Adhesive Activation | Pressure |
| Adhesion (unwind) | 100 oz/in |
| Min. Application Temp | 50° F |
|---|---|
| Min. Service Temp | |
| Max Short-Term Temp | 392° F |
| Max Long-Term Temp | 212° F |
Product Features
- Transfer tape design makes it highly conformable and suitable for a wide range of applications
- Very good initial adhesion to a wide variety of materials
- High durability due to its very good temperature and humidity resistance
- Good die cutting properties
Markets Served
- Aerospace
- Alternative wind energy
- Appliance
- Automotive
- Commercial
- Construction
- Electronics
- Commercial printing
- Industrial
- Marine
- Medical Device
- Signage, Banners, & Printing
Adhesive Tape Applications
- Mounting of lightweight parts and materials
- Mounting of foams, felts, fabrics and textiles
- Mounting of flooring systems
- Membrane switch mounting
- Lamination of insulation materials
- Splicing
Adhesive Tape Colors
- Transparent
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
