3.5 mil Aluminum Foil with liner Acrylic Adhesive

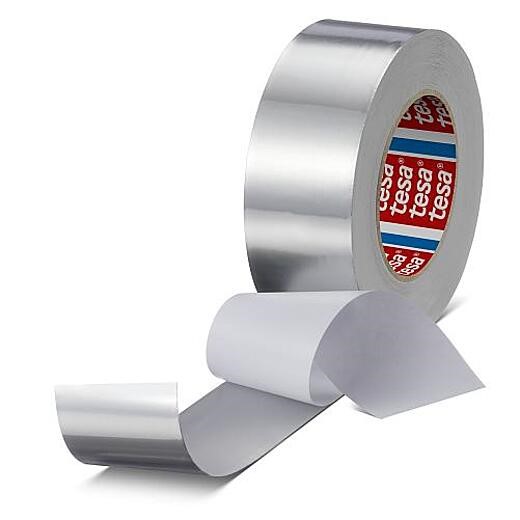

tesa® 60652 is a 3.5 mil. total, robust aluminum foil tape based on a 2 mil aluminum foil backing with a white release paper liner and has a transparent acrylic adhesive. This aluminum foil tape with a white release paper liner is commonly used for joining and sealing thermal insulation ducts and pipes, heat reflection, repairs on trailers and making substrates electrically and thermally conductive. It also serves as a barrier against moisture, vapors and gases.

Product Properties Related Information Custom Quote

Converting Services

At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.

Backing/Carrier Aluminum
Adhesive Acrylic
Thickness 3.5 Mils
Tensile 22.80 lbs/in
Elongation 6.00%
Adhesive Activation Pressure
Adhesion (unwind) 82.2 oz/in
Min. Application Temp 50° F
Min. Service Temp -40° F
Max Short-Term Temp 320° F
Max Long-Term Temp

Product Features

  • Flame retardant according to the requirements in UL 510A
  • Easy to unwind
  • Suitable for permanent applications
  • Barrier against moisture, gases, and vapors
  • Electrically and thermally conductive
  • Mechanically stable
  • Aging resistant
  • Heat and light reflective
  • 2 mil aluminum foil backing & 1.5 mil acrylic adhesive
  • Has passed Flame retardant tests according to DIN 4102, class B1

Markets Served

  • Aerospace
  • Appliance
  • Automotive
  • Construction
  • Electronics
  • Medical Device
  • Truck and trailer body

Adhesive Tape Applications

  • Reflecting heat radiation
  • Making substrates electrically and thermally conductive
  • Joining and sealing of thermal insulation, ducts and pipes
  • Repairs on trucks and trailers
  • Moisture, vapor & gas barrier
  • Attaching refrigeration coils
  • Chemical stripping masking
  • Seaming and sealing
  • Splicing thin gauge foils
  • Chemical milling

Data provided by Budnick Converting, Inc.

The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.

Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.

Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
