Budnick Converting ®
econOtape
DUCTCLO 3800
76 Mesh Low Gloss Gaffers Tape

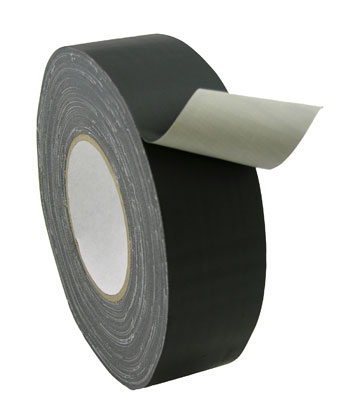

DUCTCLO 3800 is an 11.8mil, 76 mesh, high quality polyethylene coated cloth laminated to a low gloss film with a natural rubber-based adhesive system. This tape will conform well to irregular surfaces and will not twist or curl. It features excellent water, vapor, and abrasion resistance, and offers clean removal on most surfaces (type and dwell time may effect performance). DUCTCLO 3800 is suitable for entertainment industry applications where minimal visibility of tape is desired. It is used for holding down cable, wires, electrical cords, and marking placement in stage set ups. Suitable as a book binding tape for seaming and reinforcement.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | Polyethylene Coated Cloth |
|---|---|
| Adhesive | Rubber |
| Thickness | 11.8 Mils |
| Tensile | 36.00 lbs/in |
|---|---|
| Elongation | |
| Adhesive Activation | Pressure |
| Adhesion (unwind) | 29 oz/in |
| Min. Application Temp | 40° F |
|---|---|
| Min. Service Temp | -31° F |
| Max Short-Term Temp | 176° F |
| Max Long-Term Temp |
Product Features
- High Quality Polyethylene Coated Cloth
- Conforms Well to Irregular Surfaces
- Will Not Twist Or Curl
- Excellent Water, Vapor, and Abrasion Resistance
- Clean Removal on Most Surfaces
Markets Served
- Arts & Entertainment
Adhesive Tape Applications
- Holding Down Cable, Wires, and Electrical Cords
- Marking Placements in Stage Set-Ups
- Book Binding
Adhesive Tape Colors
- Black
- Brown
- Burgundy
- Gray
- Olive drab
- Red
- White
- Yellow
- Dark Green
- Dark Blue
- Light Blue
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
