Budnick Converting ®
3M
VHB™ Tape 5930
32 Mil Conformable Acrylic Foam Tpae

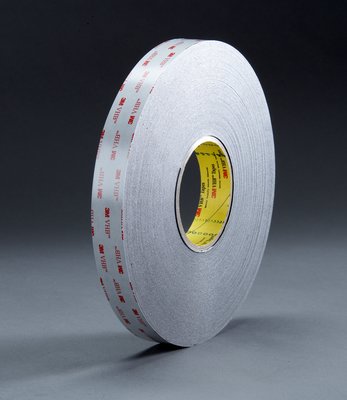

3M™ VHB™ Tape 5930 is a 32 mil very high bond, double sided acrylic foam tape. It is used for bonding a wide variety of substrates, including lower surface energy materials, such as powder coated paints and plastics. The foam is conformable to increase contact with surfaces.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | Acrylic Foam |
|---|---|
| Adhesive | Acrylic |
| Thickness | 32 Mils |
| Tensile | 90.00 lbs/in |
|---|---|
| Elongation | |
| Adhesion (liner) | 272 oz/in |
| Adhesion (unwind) | 272 oz/in |
| Min. Application Temp | 50° F |
|---|---|
| Min. Service Temp | -40° F |
| Max Short-Term Temp | 300° F |
| Max Long-Term Temp | 200° F |
Product Features
- Dark gray closed-cell acrylic foam carrier
- VHB™ Acrylic Foam Tape
- Static shear holds 1,000 grams/.5 sq. in. over 10,000 min. at 72°
- Density = 40lb./
- High solvent resistance
- Moisture resistant
- Highly conformable
- UL 746 C
Adhesive Tape Applications
- Bonding low surface energy powder coated paints, metals, plastics & a variety of other paint systems
Adhesive Tape Colors
- Black
- White
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
