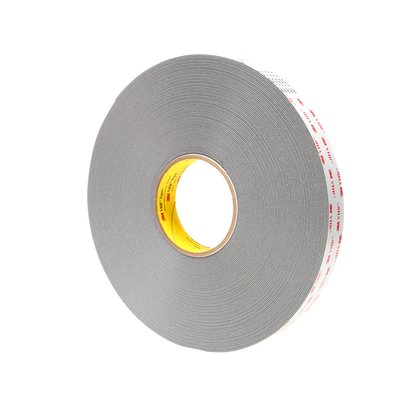

3M™ VHB™ Tape 4941F
Gray Conformable Acrylic Foam Tape - Poly Liner
3M™ VHB™ Tape 4941F is a 45 mil, double sided adhesive foam. It is one of two 3M VHB; core go-to items. 4941F is the main product when conformability is necessary. 3M's other go-to item when internal strength is more important than conformability is 4950. The 4941F family utilizes multi-purpose acrylic adhesive on both sides of a conformable foam. It has excellent adhesion to a broad range of high and medium surface energy substrates including metals, glass and a wide variety of plastics and plasticized vinyl. In many cases 4941F can replace rivets, spot welds, liquid adhesives or other permanent fasteners. This product is available with a paper liner as 4941.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | Acrylic Foam |
|---|---|
| Adhesive | Acrylic |
| Thickness | 45 Mils |
| Tensile | 85.00 lbs/in |
|---|---|
| Elongation | |
| Adhesion (liner) | 320 oz/in |
| Adhesion (unwind) | 320 oz/in |
| Min. Application Temp | 60° F |
|---|---|
| Min. Service Temp | -31° F |
| Max Short-Term Temp | 200° F |
| Max Long-Term Temp | 300° F |
Product Features
- Multipurpose medium density foam offers an economical alternative to caulks and sealants
- Acrylic adhesive bonds to a wide range of materials including metals, glass, and high and medium surface energy plastics and paints
- Unique adhesive has the ability to resist migration of plasticizers in vinyl substrates
- Viscoelastic acrylic gives foam energy absorbing and stress relaxing properties
- Conformable foam provides high strength with the capability of conforming to the irregularities of rigid substrates even when there is a slight mismatch
- Resistant to moisture, plasticizers, solvents, UV light, and mild exposure to chemicals
- UL Recognition 746C
- Low outgassing properties
Markets Served
- Construction
- Glass Manufacturing
- Industrial
- Aerospace
- Electronics
Adhesive Tape Applications
- Bond muntin bars to windows
- Bond & seal polycarbonate lens over LCD
- Bond pre-painted metals in truck assembly
- Mount vinyl wiring ducts and conduit channels
- Bond & seal plastic windows to pre-painted control panels/switch gear
- Replace rivets
- Bonding a variety of substrates, including most metal, sealed wood and glass, as well as many plastics, composites and painted surfaces
Adhesive Tape Colors
- Gray
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
