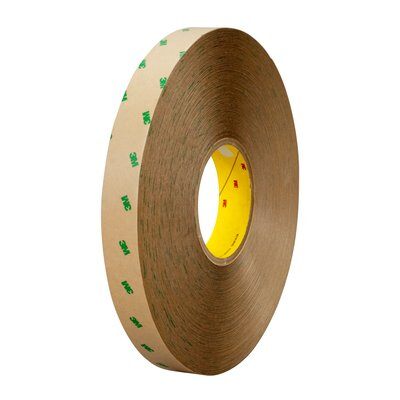

3M 9505
Adhesive Transfer Tape

General Information

9505 is a 4.9 mil adhesive transfer tape with 220 adhesive. It is an economical choice for general industrial bonding of metals, painted metals, and high surface energy plastics.

Backing	Adhesive (unwind)	Thickness (total)	Liner Type (outer)
	Acrylic	4.90 mil	Tan, 58# Polycoated Kraft with green "3M" logo

Adhesion to Steel 180° Peel	Adhesive Activation	Tensile Strength	Elongation Percent
	Pressure

Min Application Temp	Min Service Temp	Max Short-Term Temp	Max Long-Term Temp
		350 °F	250 °F

Adhesive Tape Features

3M 220 acrylic adhesive
Static Shear with 2,000 gram load at 70°F is 5,000 minutes to fail
Resistant to occasional splashes of organic materials including MEK, automotive oil, weak acid and base solutions and gasoline
Resistant to humidity and intermittent water exposure
Not recommended for low energy plastics (polypropylene, polyethylene, powder coated paints)

Adhesive Tape Applications

Attachment of nameplates, appliques and decorative trim to metal and high surface energy plastics
Lamination to sub-surface printed polycarbonate or polyester graphic overlay materials
Often used in cost-effective, long-term bonding applications

Adhesive Tape Markets Served

Adhesive Tape Colors

Comparable products

3M 9505

Adhesive Transfer Tape

Backing	Adhesive	Thickness	Adhesion
N/A	Acrylic	4.90mil	oz/in

Edit

Is Featured

Pricing Popup Link: <Not Available>

Recommended Rank: 25

Avery Dennison 1150

High Temperature Acrylic Transfer

Backing	Adhesive	Thickness	Adhesion
N/A	Acrylic	2.00mil	60.00oz/in

Edit

Is Featured

Pricing Popup Link: <Not Available>

Recommended Rank: 25

Avery Dennison 1115

High Performance Acrylic Transfer

Backing	Adhesive	Thickness	Adhesion
N/A	Acrylic	4.50mil	7.00oz/in

Edit

Is Featured

Pricing Popup Link: <Not Available>

Recommended Rank: 25

MACtac Inc. IF2015

Laminating Adhesive

Backing	Adhesive	Thickness	Adhesion
N/A	Acrylic	5.00mil	81.60oz/in

Edit

Is Featured

Pricing Popup Link: <Not Available>

Recommended Rank: 25

Converting Options

Converting Services

Budnick Converting offers a number of services to take the product you need and make it perfect for your application. With converting methods ranging from precision slitting or die-cutting to printing and coating, Budnick has the capabilities to create anything you can dream up.

Services

Precision Cutting

Die-Cutting

Slitting

Printing

Adhesive Coating

Finishing and Spooling

Next Steps

Learn More About Budnick

Contact Us

View Case Studies

The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.

Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.

Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
