Budnick Converting ®
econOtape
PEFILM 4520

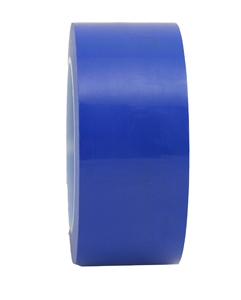

5.5 Mil Low Density Polyethylene Film tape
PEFILM 4520 is a 5.5mil low density polyethylene film tape with an acrylic adhesive. This tape is highly conformable and features good abrasion and chemical resistance. The acrylic based adhesive systam provides high adhesion and cohesion which yields a permanent bond with virtually no edge bleed out. PEFILM 4520 is UV resistant and offers an outstanding moisture barrier. It will not crack or crease at low temperatures and has excellent long term aging stability without yellowing. PEFILM 4520 is used for water filter purification pipe wrap, protective sealing, splicing, seaming and patching where a highly conformable and optically clear material is required.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | PE - Polyethylene |
|---|---|
| Adhesive | Acrylic |
| Thickness | 5.5 Mils |
| Tensile | 11.00 lbs/in |
|---|---|
| Elongation | 400.00% |
| Adhesive Activation | Pressure |
| Adhesion (unwind) | 56 oz/in |
| Min. Application Temp | 50° F |
|---|---|
| Min. Service Temp | 50° F |
| Max Short-Term Temp | 120° F |
| Max Long-Term Temp |
Product Features
- Low Density
- Highly Conformable
- Good Abrasion and Chemical Resistance
- Outstanding Moisture Barrier Properties
- High Adhesion and Cohesion
- UV Resistant
- Excellent Long-Term Aging Properties - Non-Yellowing
Markets Served
- Industrial
Adhesive Tape Applications
- Water Filter Purification Pipe Wrap
- Protective Sealing
- Splicing
- Seaming and Patching
Adhesive Tape Colors
- Black
- Blue
- Clear
- Green
- Orange
- Red
- White
- Yellow
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
