Budnick Converting ®
econOtape
LITHO 4370
***Discontinued*** Red Lithographer's Tape

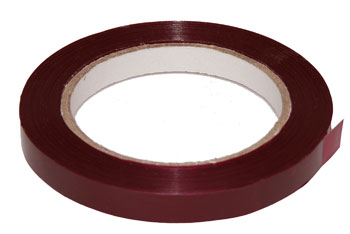

Discontinued LITHO 4370 is a 2.7mil (0.70mm) red PVC film with a solvent based natural rubber adhesive. This red lithographer's tape is used for pre-press stripping, edging, and opaquing applications. It absorbs UV and short-wave light. LITHO 4370 is translucent and easily repositionable , and will not curl or damage negatives upon removal.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | PVC - Polyvinylchloride |
|---|---|
| Adhesive | Rubber |
| Thickness | 2.7 Mils |
| Tensile | 33.00 lbs/in |
|---|---|
| Elongation | 75.00% |
| Adhesion (liner) | |
| Adhesion (unwind) | 15 oz/in |
| Min. Application Temp | 40° F |
|---|---|
| Min. Service Temp | |
| Max Short-Term Temp | 158° F |
| Max Long-Term Temp |
Product Features
- 2.7mil Red PVC Film Tape
- Absorbs UV and Short-Wave Light
- Easily Repositionable
- Will Not Curl or Damage Negatives
Markets Served
- Commercial printing
- Arts & Entertainment
Adhesive Tape Applications
- Pre-Press Striping, Edging, and Opaquing
- General Graphic Arts Applications
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
