DCTISSUE 3670, 5.9mil Double Coated Tissue Tape, econOtape, adhesive tape datasheet

Home >

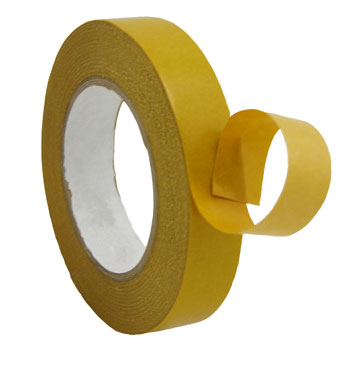

econOtape DCTISSUE 3670
5.9mil Double Coated Tissue Tape

General Information

DCTISSUE 3670 is a 5.9mil(0.15mm) double coated tissue tape consisting of a 0.5mil non-woven tissue coated on both sides with an aggressive, modified solvent free water-based acrylic adhesive wound on a 50# siliconized glassine release liner. This tape provides a strong durable bond with good dynamic and static shear strength on most surfaces. It offers excellent adhesion to non-polar PE films and foams which are difficult surfaces to splice or laminate. DCTISSUE 3670 is very resistant to humidity and weather when bonded. It features very good temperature, UV, and aging resistance, and moderate resistance against solvents. DCTISSUE 3670 provides superior conformability to irregular surfaces due to its heavy adhesive coat weight. It is designed for heavy-duty splicing and permanent holding with excellent performance on both smooth and rough surfaces. Used for core start-ups, splicing of heavy webs (wallpaper), and general holding, joining, attaching, and mounting.

Backing	Adhesive (unwind)	Thickness (total)	Liner Type (outer)
Tissue	Acrylic	5.90 mil	Siliconized Glassine Release liner

Adhesion to Steel 180° Peel	adhesion to steel 180° peel - liner side	Tensile Strength	Elongation Percent
84.00 oz/in	84.00 oz/in

Min Application Temp	Min Service Temp	Max Short-Term Temp	Max Long-Term Temp
40 °F	-40 °F	320 °F

Adhesive Tape Features

5.9mil Double Coated Tissue Tape
Strong Durable Bond
Good Dynamic and Static Shear
Excellent Adhesion to Non-Polar PE Films and Foams
Very Resistant to Humidity and Weather
Good Temperature, UV, and Aging Resistance
Superior Conformability to Irregular Surfaces

Adhesive Tape Applications

Heavy-Duty Splicing
Permanent Holding
Core Start-Ups
Splicing of Heavy Webs
General Holding, Joining, Attaching, and Mounting

Adhesive Tape Markets Served

Industrial

Adhesive Tape Colors

Translucent

Comparable products

econOtape DCTISSUE 3670

5.9mil Double Coated Tissue Tape

Backing	Adhesive	Thickness	Adhesion
Tissue	Acrylic	5.90mil	84.00oz/in

Edit

Is Featured

Pricing Popup Link: javascript:showProductDialog(5191, true);

Recommended Rank: 60

Converting Options

Converting Services

Budnick Converting offers a number of services to take the product you need and make it perfect for your application. With converting methods ranging from precision slitting or die-cutting to printing and coating, Budnick has the capabilities to create anything you can dream up.

Services

Precision Cutting

Die-Cutting

Slitting

Printing

Adhesive Coating

Finishing and Spooling

Next Steps

Learn More About Budnick

Contact Us

View Case Studies

The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.

Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.

Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
