DCPAPER 3524, Double Coated Paper Tape, econOtape, adhesive tape datasheet

Home >

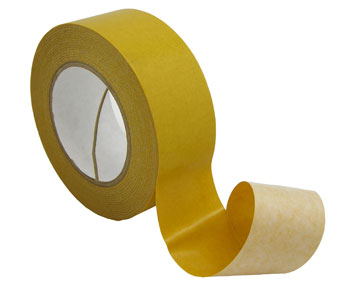

econOtape DCPAPER 3524
Double Coated Paper Tape

General Information

DCPAPER 3524 is a 6.7 mil (0.17mm) agressive double coated paper tape consisting of a 4mil white paper coated on both sides with an aggressive modified solvent free water based acrylic adhesive on a gold siliconized paper liner. This adhesive offers good direct and durable adhesive strength and dynamic/static shear strength. It is temperature, UV, aging, and water vapor resistance. This tape has no plasticizer migration on most surfaces and has moderate chemical resistance that should be tested before use. DCPAPER 3523 is an excellent corrugated splicing tape, and can also be used for other holding, joining, attaching, and laminating applications.

Backing	Adhesive (unwind)	Thickness (total)	Liner Type (outer)
Crepe Paper	Acrylic	6.70 mil	Siliconized Paper

Adhesion to Steel 180° Peel	adhesion to steel 180° peel - liner side	Tensile Strength	Elongation Percent
88.00 oz/in	88.00 oz/in	4.00 lbs/in	5.00%

Min Application Temp	Min Service Temp	Max Short-Term Temp	Max Long-Term Temp
40 °F	-40 °F	400 °F	248 °F

Adhesive Tape Features

6.7 mil Double Coated White Paper Tape
Aggressive Modified Solvent-Free Water-Based Acrylic Adhesive
Durable Adhesive Strength
Good Dynamic and Static Shear Strength
Temperature, UV, Aging, and Water Vapor Resistant
No Plasticizer Migration on Most Materials
Moderate Chemical Resistance

Adhesive Tape Applications

Corrugated Splicing
Holding, Joining, and Attaching
Laminating

Adhesive Tape Markets Served

Industrial

Adhesive Tape Colors

White

Comparable products

econOtape DCPAPER 3524

Double Coated Paper Tape

Backing	Adhesive	Thickness	Adhesion
Crepe Paper	Acrylic	6.70mil	88.00oz/in

Edit

Is Featured

Pricing Popup Link: javascript:showProductDialog(5193, true);

Recommended Rank: 60

Converting Options

Converting Services

Budnick Converting offers a number of services to take the product you need and make it perfect for your application. With converting methods ranging from precision slitting or die-cutting to printing and coating, Budnick has the capabilities to create anything you can dream up.

Services

Precision Cutting

Die-Cutting

Slitting

Printing

Adhesive Coating

Finishing and Spooling

Next Steps

Learn More About Budnick

Contact Us

View Case Studies

The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.

Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.

Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
