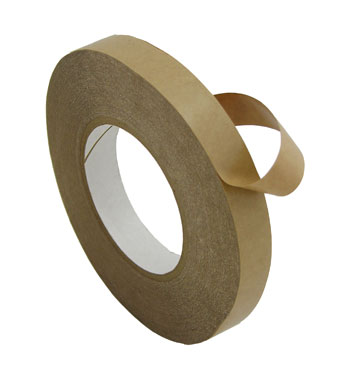

econOtape ADHTRANS 3020
1.9 mil Acrylic Adhesive Transfer Tape

General Information
ADHTRANS 3020 is a 1.9 mil solvent based acrylic transfer tape. This tape's glass stabilization allows for lathe slitting and cleaner unwinding. The high quick tack and good shear strength makes this the best choice for more demanding bonding/joining applications. This tape is great for use in core starting, splicing of papers, films, metals, and other webs. It can be used as a laminating adhesive for foams and fabrics.
Backing Adhesive
(unwind)		 Thickness
(total)		 Liner Type
(outer)
  Acrylic 1.90 mil 120g Siliconized Paper

Adhesion to Steel
180° Peel		 Adhesive Activation Tensile Strength Elongation Percent
73.00 oz/in Pressure

Min Application
Temp		 Min Service
Temp		 Max Short-Term
Temp		 Max Long-Term
Temp
40 °F -22 °F 302 °F
Adhesive Tape Features
  • Glass Stabilization
  • Clean Unwinding
  • High Quick Tack
  • Good Shear Strength
Adhesive Tape Applications
  • Core Starting
  • Splicing of Paper, Films, Metals and Other Webs
  • Laminating Adhesive to Foam or Fabric
Adhesive Tape Markets Served
  • Industrial
Adhesive Tape Colors

Comparable products
econOtape ADHTRANS 3020 View Datasheet
1.9 mil Acrylic Adhesive Transfer Tape
Backing Adhesive Thickness Adhesion
 N/A   Acrylic   1.90mil   73.00oz/in

Edit

Pricing Popup Link: javascript:showProductDialog(5169, true);

Recommended Rank: 60

Converting Options
most
popular
Industries Served

Prototyping Services

Inventory Management
Converting Services
Budnick Converting offers a number of services to take the product you need and make it perfect for your application.  With converting methods ranging from precision slitting or die-cutting to printing and coating, Budnick has the capabilities to create anything you can dream up.
Services
Precision Cutting

Die-Cutting

Slitting

Printing

Adhesive Coating

Finishing and Spooling
Next Steps
Learn More About Budnick

Contact Us

View Case Studies

The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.

Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.

Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
